New and Improved High Quality Sealed Bearings by Core Moto USA
Product is sold as single units. Increase quantity if multiple units of the same PN are required.
- New and improved design
- Sourced from top-tier bearing manufacturers
- Larger and wider than stock for added stability for most applications
- Suited for long service life
- Choose correct bearing type
- Sold each
Core Moto offers smooth rolling bearings from genuine top tier bearing manufacturers only. Currently the availability of counterfeit bearings is a worldwide epidemic. Core Moto only sources genuine brand name bearings from top tier bearing distributors or factory direct to ensure tolerances and material compositions meet specifications. Our bearings are in most cases larger and wider than stock for more stability. We also choose a bearing seal type that is suited for long service life when maintained properly. Bearings are sold each.
There are 2 ways to determine what bearings are needed for your wheels:
OPTION 1: Read the numbers on the seals of your current bearings.
Typically, these numbers are 4 digits and start with the number 6 (Example: 6006). Your bearing may have other letter following the 4-digit number such as 2RS or RSR. No matter what letters follow the 4-digit number, our bearings will be a direct replacement so long as the 4-digit number is the same.

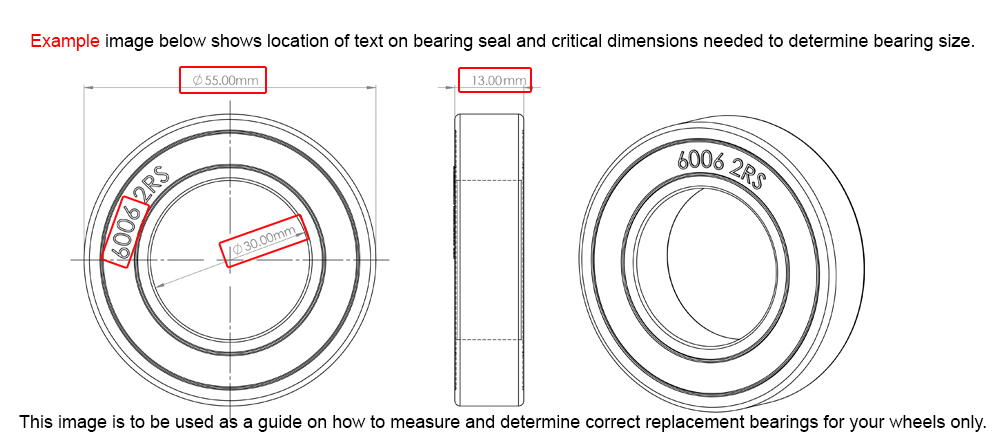

OPTION 2: Pull the bearings and provide measurements of the OD, ID and Thickness in mm. Bearing dimensions listed are rounded to the whole metric number:
- 6006 = OD 55mm - ID 30mm - T13
- 6204 = OD 47MM - ID 20mm - T14
- 6205 = OD 52MM - ID 25mm - T15
- 60/28 = OD 52MM - ID 28mm - T12
- 6005 = OD 47MM - ID 25mm - T12
Bearings required for all Apex-6 wheel applications (except for Aprilia RSV4/Touono):
- Rear wheel: 3 units of bearing # 6006
- Front wheel: 2 units of bearing # 6205
Bearings required for Apex-6 Aprilia RSV4/Touono models:
- Rear wheel: 3 units of bearing # 6006
- Front wheel: 1 unit of bearing # 6205 + 1 unit of bearing # 60/28
IMPORTANT NOTE: Carrozzeria USA INC went out of business in October 2015, Core Moto USA took over in 2016. However, due to the lack of historical technical data provided to us related to wheel dimensional changes before 2016, Core Moto USA cannot offer bearings based on make / model and year. Carrozzeria USA INC made many different model versions of each wheel, all with dimensional differences that drive the dimensions of the components used. Please read above on how to determine what bearings you will need for your older wheels. Returns are not accepted on this item. Wheels produced in 2016 are supported but may require contact with customer support. Wheels produced after 2017 typically came with full diagrams showing and part numbering all replacement parts.
NOTE: V-Track wheels produced after 2017 with front wheel engraved with "FW13517" use the same bearings as Apex-6. If the front wheel does not have FW3517 engraved on the spoke, you must determine the bearings required by self-inspection using the guide above.
Beware of counterfeit brand name bearings:
As global trade expands and allows more and more retailers to buy components directly from manufacturers, counterfeit bearings have become a very real danger and extremely widespread.... this problem has become epidemic as the market and need for bearings is so large worldwide. Counterfeit bearings are not produced to rated specifications. Counterfeit bearing tolerances and material compositions are neglected while package branding and markings in most cases makes are actually better quality than the original product. At Core Moto, we only source our bearings through authorized genuine brand name bearing distributors or factory direct.
|
|
|
 |
|
 |
|
